Big Block Chevy Alternator & Power Steering Brackets LWP

Description

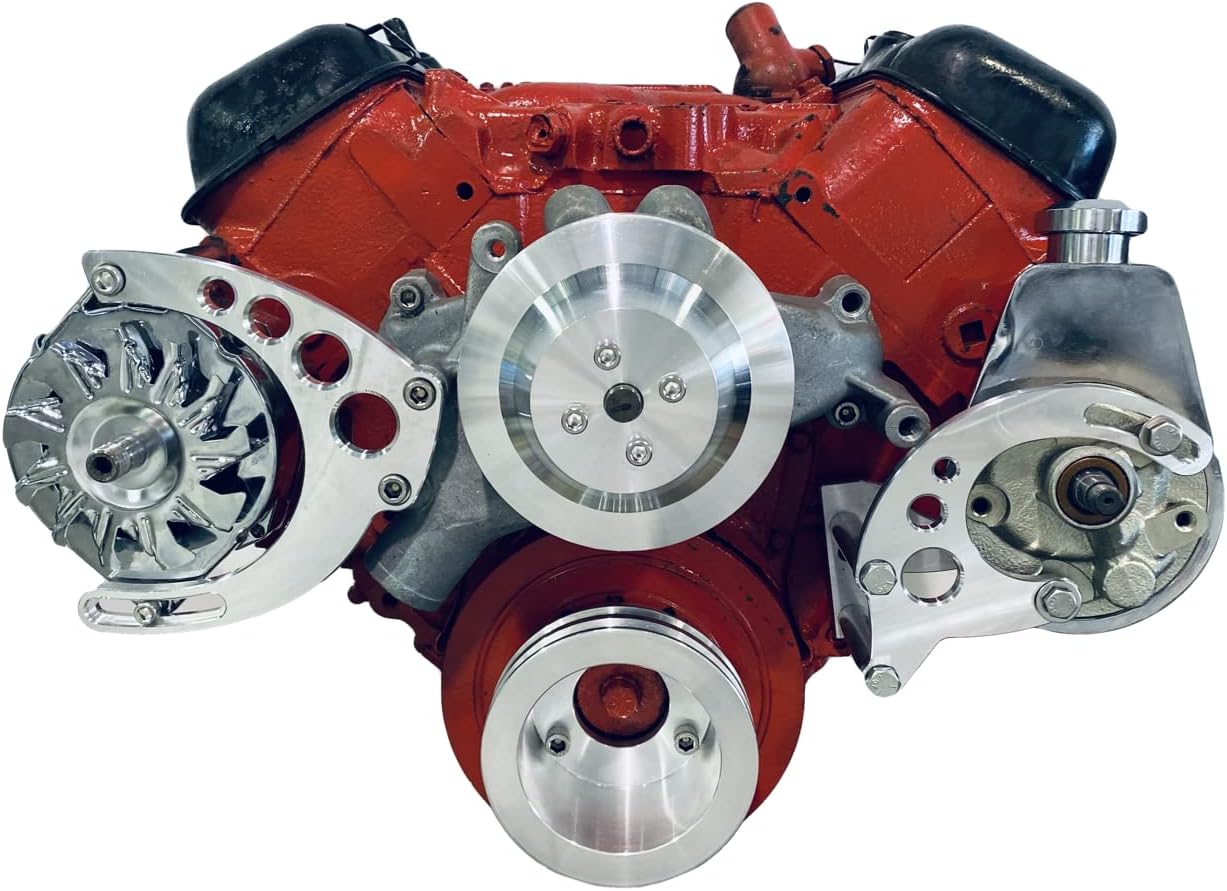

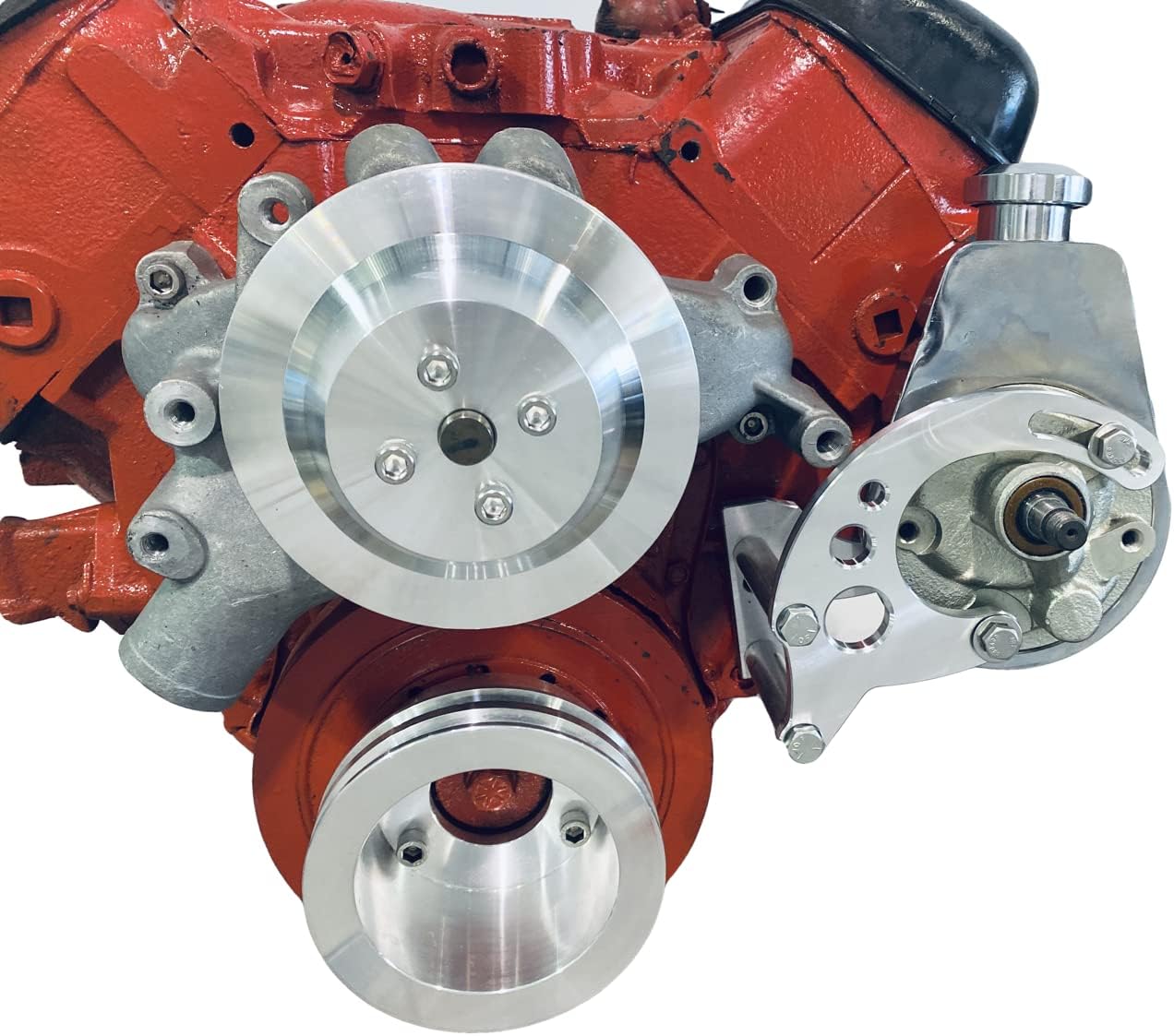

New Big Block Chevy Alternator & Power Steering Bracket Kit Long Water Pump

• Brackets Have Been CNC Machined in USA.
• Alternator Bracket Made From 1/2″ Thick 6061-t6 Billet Aluminum.
• Power Steering Main Bracket Made From 3/8″ Thick 6061-t6 Aluminum
• 1.00″ Inch Spacer Block and a Rear Support Avoiding Any Deflection at All.
• Works With GM Alternator, 6 and 12 O’clock: Measures 6 5/8″ (6.6″ or 168mm) From the Center of the Pivot Hole to the Center of the Adjusting Hole.

Applications:

• Bracket Will Fit Long Water Pump Only.
• 396, 427 & 454
• Requires 1973+ Heads With 3/8″ Bolt Hole. (for Alternator Bracket)
• Saginaw P Series Power Steering Pump.

What’s Included:

• 1 Alternator Bracket
• 1 Power Steering Main Bracket, 1 Spacer Block, 1 Rear Support.
• Hardware and Instructions Require to Install

• Alternator Is Not Included.
• Power Steering Pump Is Not Included.
